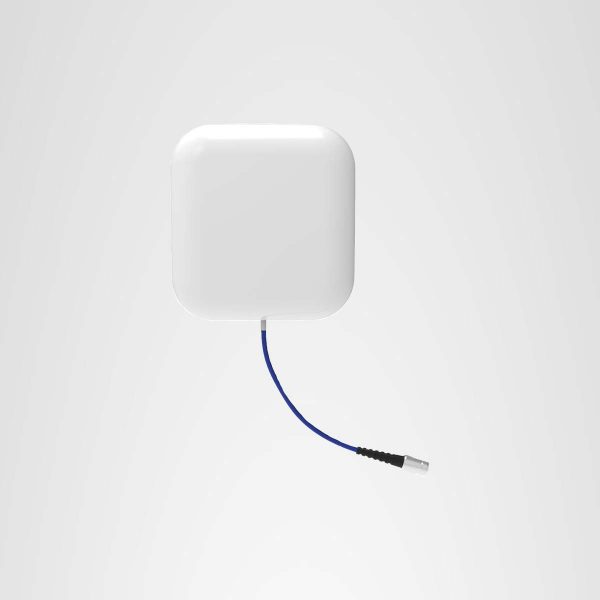

RFS Omni ANTEN I-ATP5-698/3800MHz
RFS Omni ANTEN I-ATP5-698/3800MHz
RFS Omni ANTEN I-ATP5-698/3800MHz
Teknik Özellikler
|
General Specifications
|
| Product Type |
|
Panel Antenna |
| Techn. Application |
|
Indoor |
|
|
Mechanical Specifications
|
| Number of Input Ports |
|
1 |
| Connectors |
|
N female |
| Connector Cable |
mm (in) |
300 (11.8) |
| Mounting Hardware included |
|
Wall bracket, screws |
| Height (Less Connectors) |
mm (in) |
180 (7.09) |
| Width (Less Connectors) |
mm (in) |
170 (6.7) |
| Length (Less Connectors) |
mm (in) |
60 (2.36) |
| Weight |
kg (lb) |
0.4 (0.88) |
|
|
Electrical Specifications
|
| Frequency |
MHz |
698 – 806 |
806 – 960 |
1427 – 1710 |
1710-2700 |
3400-4000 |
| Gain, typ. |
dBi |
5.0 ± 1.0 |
6.0 ± 1.0 |
7.0 ± 1.0 |
7.0 ± 1.0 |
5.5 ± 0.5 |
| max. VSWR |
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| Beam width, Vertical, typ. |
° |
73 |
70 |
60 |
60 |
30 |
| Beam width, Horizontal, typ. |
° |
80 |
80 |
65 |
60 |
55 |
| Front-To-Back-Ratio |
dB |
5 |
8 |
10 |
12 |
10 |
| Impedance, Ohm |
Ω |
50 |
| Polarization |
|
Vertical |
| Intermodulation (IM3) |
|
-153dBc (2 x 43dBm) |
| Total Input Power max. |
W |
50 |
|
|
Material
|
| Radome Material |
|
ABS |
| Radome Color |
|
White (RAL9003) |
|
|
Temperature Specifications
|
| Operation Temperature |
°C (°F) |
-40 to 55 (-40 to 131 ) |
|
|
Testing and Environmental
|
| Environmental Class |
|
Indoor |
|
